Magnum Metro X
Body Position:
Upright
Electric Bike Class:
Throttle On-demand (Class 2), Speed Pedelec (Class 3)
*Throttle can be removed for Class 1
Warranty:
One Year Limited Warranty

Max Load:
265lbs

ELECTRONIC DETAILS

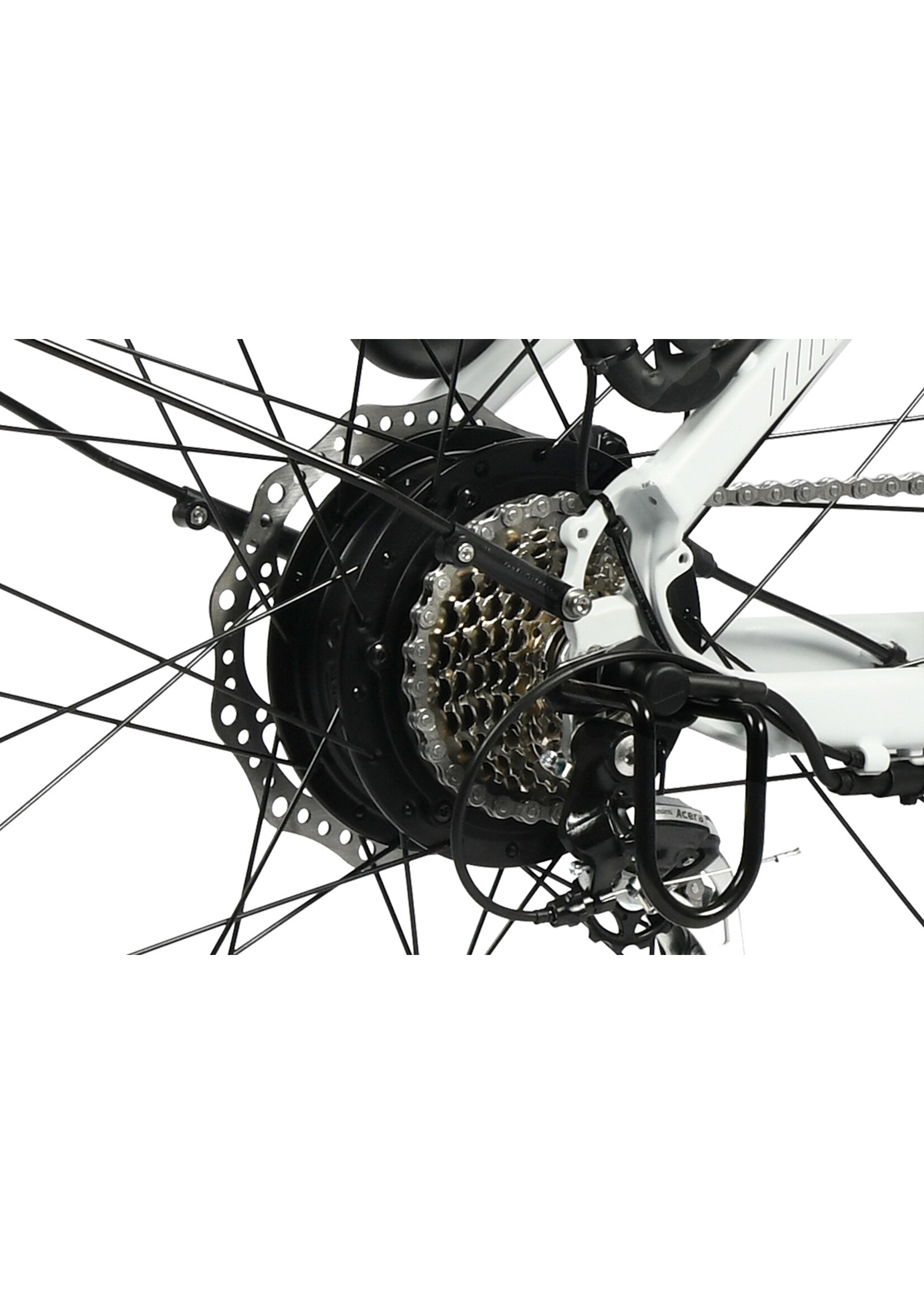

Motor Type: Bafang Rear Geared Hub Motor
Motor Output: 48v 500w

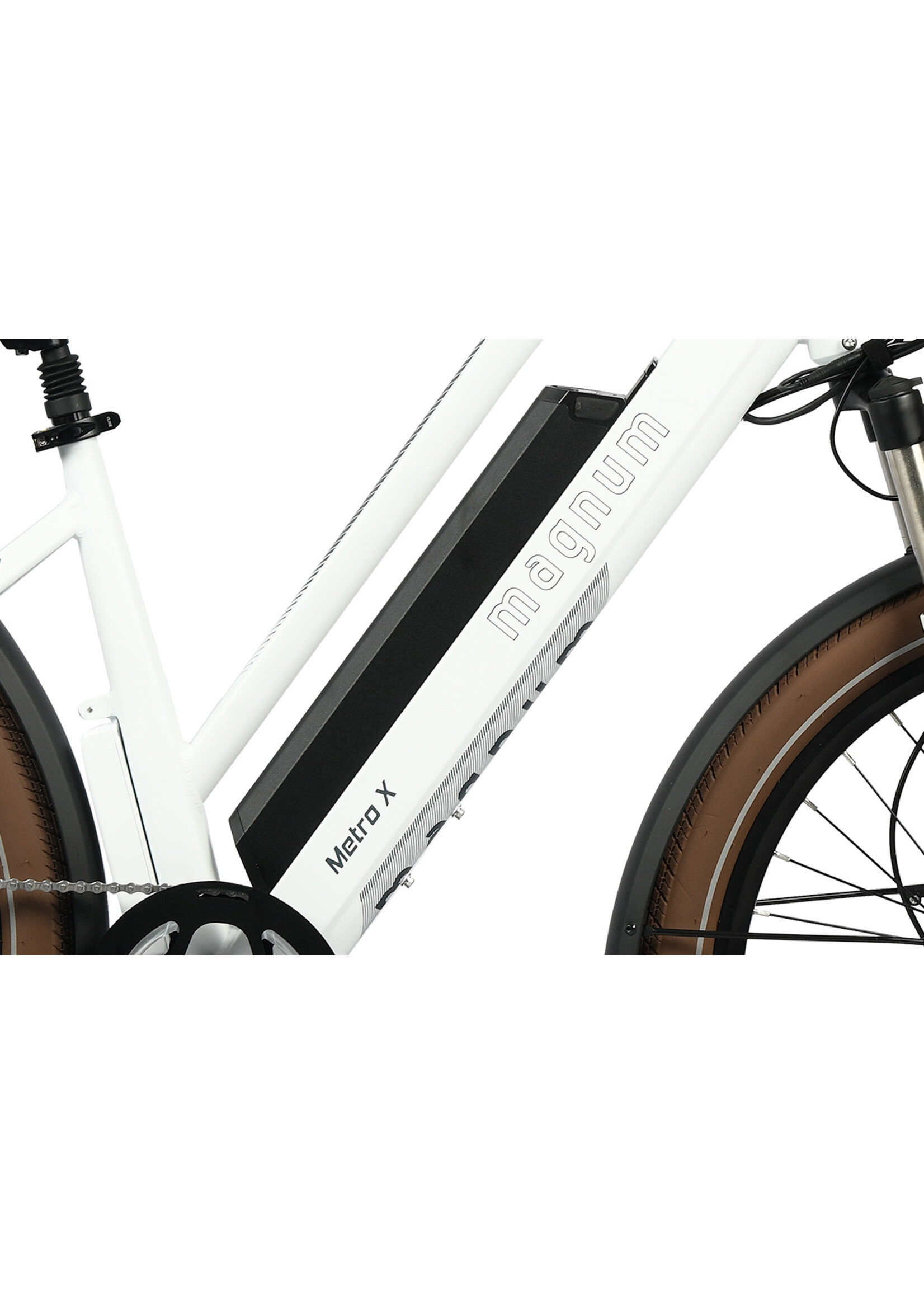

Battery Voltage / Amp Hours / Watt Hours: 48 Volt / 15 Ah / 720 Wh
Battery Chemistry: Lithium Nickel Cobalt Manganese (Li-ncm)
Estimated Charge Time: 7.5 Hours (For a full charge)
Estimated Min And Max Range: 35 To 50 Miles (Depending On Riding Style, Terrain, Rider Weight And Pedal Assist Level.)
Display Type: Magnum LCD
Display Records: Power Output Indicator, Battery Level, Speed, Assist Level, Odometer, Trip Distance, Trip Time, Battery Voltage
Drive Modes: Cadence Sensing Pedal Assist, Paddle Throttle, Walk Mode
Top Speed: 28mph With Pedal Assist, 20mph Throttle Only
Lights: Integrated front and rear light controlled from the display / Brake Light activated when braking

BICYCLE DETAILS

Frame Type: Step-Through (For easy mounting and dismounting)
Frame Material: 6061 Aluminum Alloy

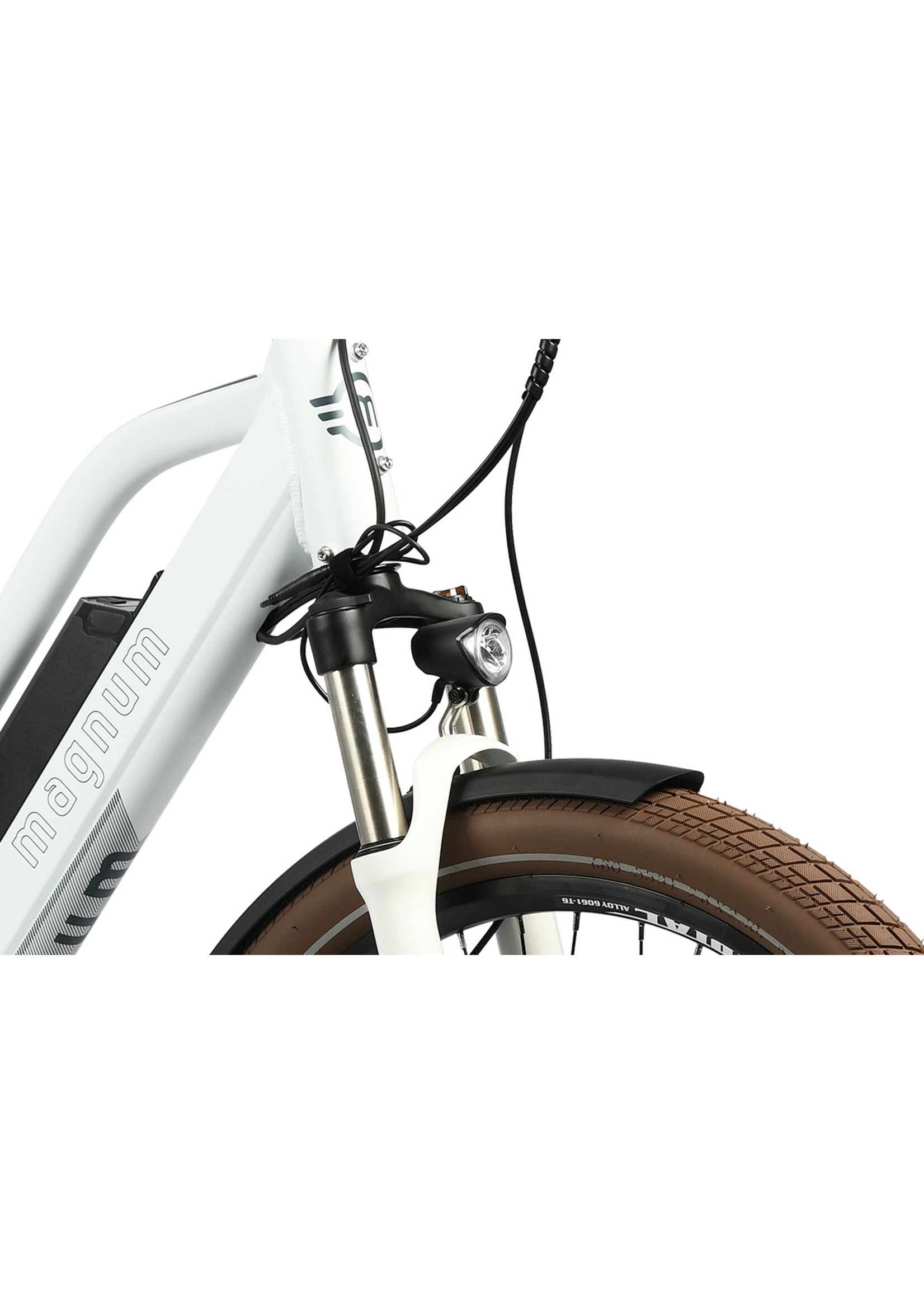

Fork Details: Suspension fork with lockout & preload adjustment
Gearing Details: Shimano Acera Derailleur 7 Speed
Shifter Details: Shimano 7 speed
Pedals: Wellgo Aluminum Platform
Stem: Promax Tool-free adjustable

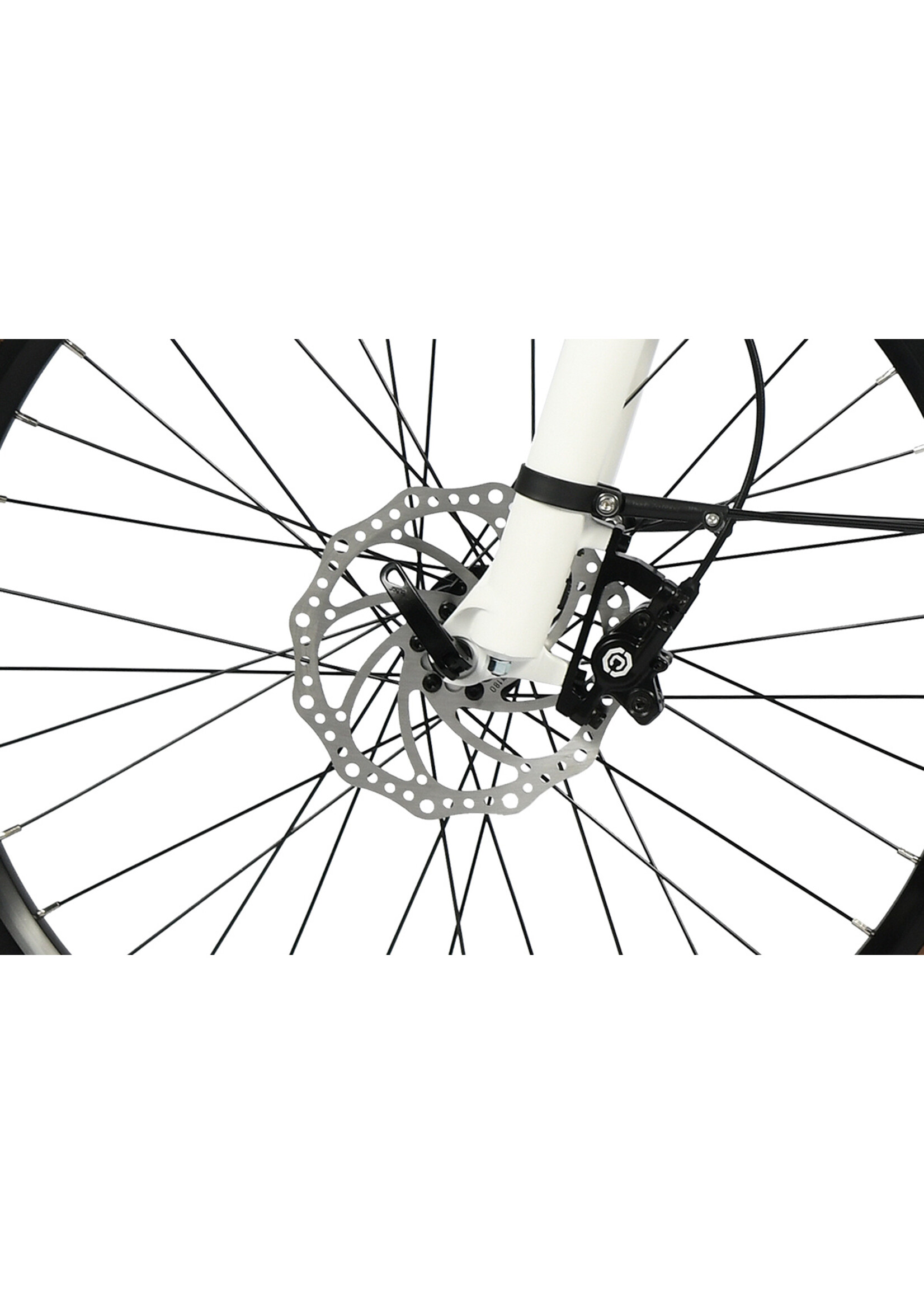

Brake Details: Clarks Hydraulic disc brakes
Grips: Brown Faux Leather With Stitching
Saddle: Selle Royal Polygel
Seatpost / Seatpost Dimensions: Suspension
Fenders: Front And Rear
Rims: Aluminum Alloy
Tires: 26in x 2.4in brown tire INNOVA
Wheel Size: 26″
Kickstand: Double leg kickstand

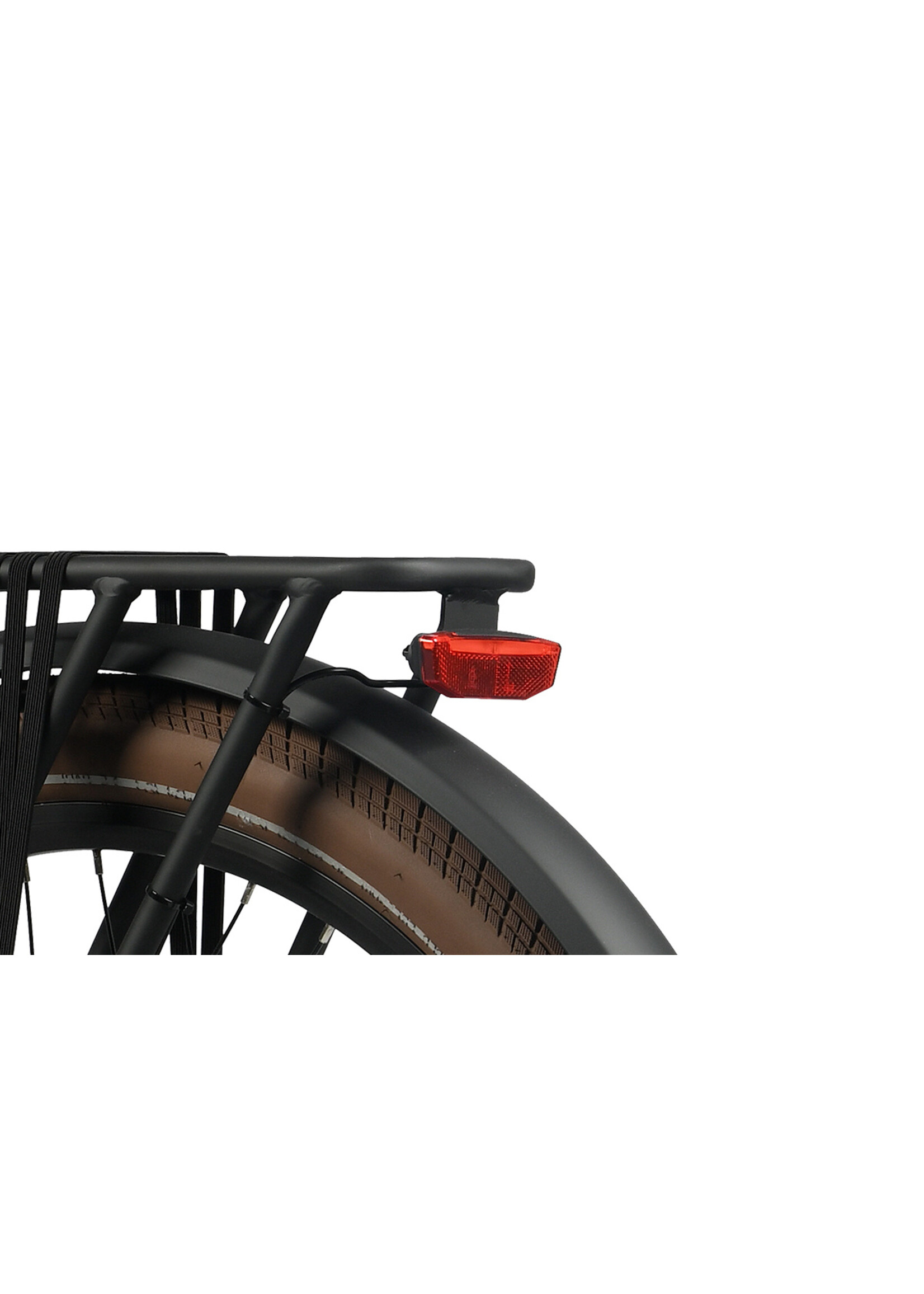

Rack: Rear rack included

A. Max Seat Height = 74cm

B. Min Seat Height = 58.5cm

C. Standover Height = 55.5cm

D. Handlebar Height = 106cm to 116cm

E. Wheel Base = 110.5cm

F. Total Length = 179cm

Reach = 54cm

Seat Tube Length = 44cm
