MAGNUM SCOUT CALLOUT FEATURES
26ʺ inch wheels with 4” knobby-tread fat tires designed for performance and comfortability, absorbing shock from rides on bumpy or rough terrain and creating a more comfortable ride on most surfaces.
Long range 48V / 17.5 Ah Battery for a 60 – 100 km range depending on a number of variables like body weight, cargo weight, terrain, wind direction, and pedal assist level.
750W Bafang Motor (peaks at 1000 watts) with 6 modes of pedal assist, for speeds of up to 32 km.
Integrated powerful front headlight and rear light (with rear light activated by braking).
The cockpit features an all new large display, with a backlight for clear visibility during night rides, increasing the rider’s safety and control.
Motor Type: Bafang Rear Hub
Motor Output: 48v 750W Nominal
Battery: 17.5Ah or 19.2Ah
Estimated Charge Time: 8.5 /9.7 Hours
Estimated Range: 60 – 100 KM
Drive Modes: Cadence Sensing Pedal Assist, Twist Throttle Top Speed: 32 KM/HR
Lights: Front and Rear Integrated
Total Weight: 74lbs Battery Weight: 10lbs
Frame Type: High Step with semi- integrated battery
Frame Material: Aluminum
Fork Details: Suspension Fork with Lockout

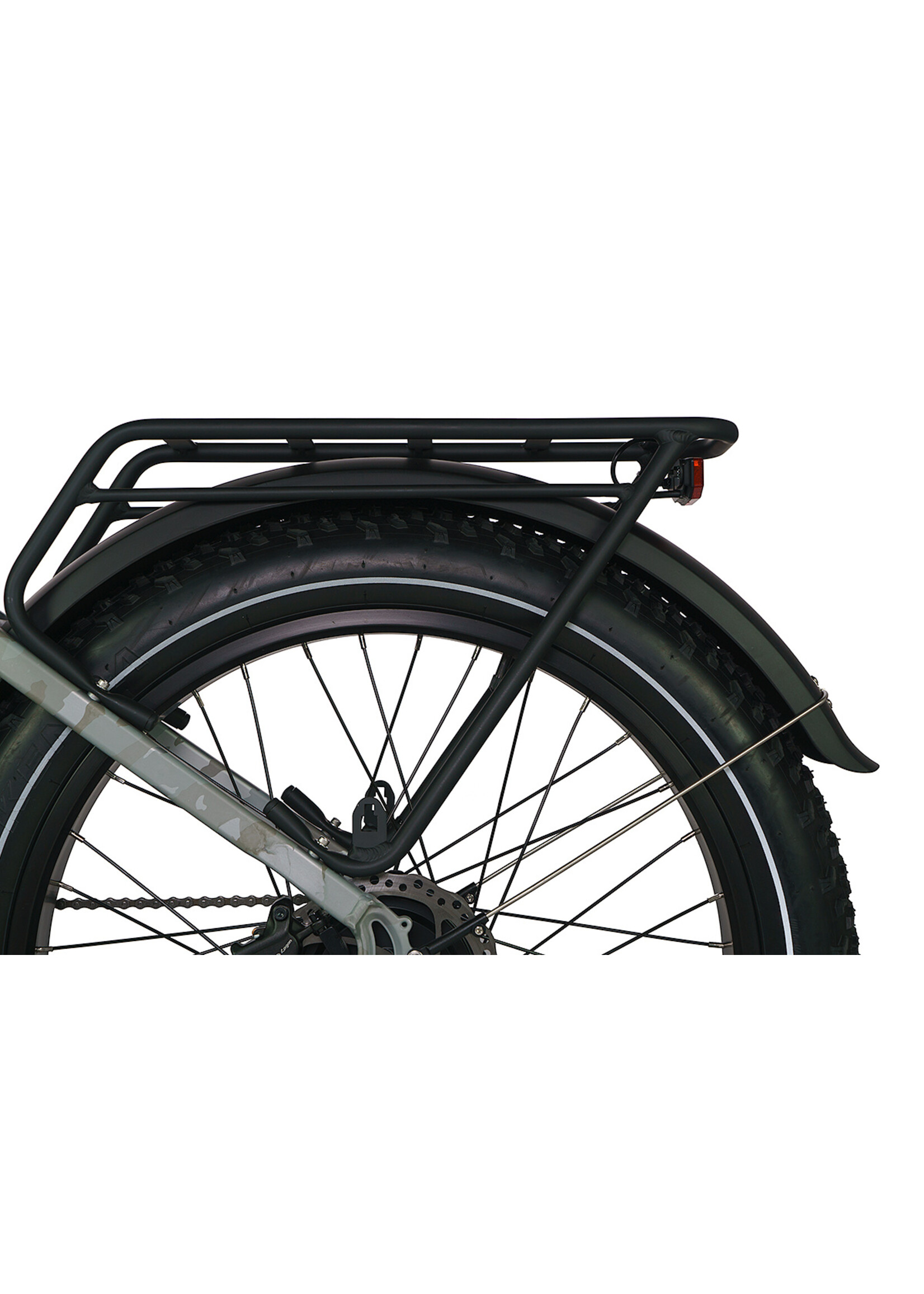

Attachment Points: Rear Rack, Bottle Cage Mount, Fender Mounts, Front Carrier, Derailleur Guard Mounts
Gearing Details: 7 Speed Shimano Altus Shifter Details: 7 Speed Shimano
Cranks: 52T 170mm
Pedals: Welgo Platform
Stem / Handlebar: Promax Fixed
Brake Details: Logan Hydraulic Disc Brakes
Grips: Leather Ergo
Seatpost: Promax 30.4mm
Fenders: Front and Rear
